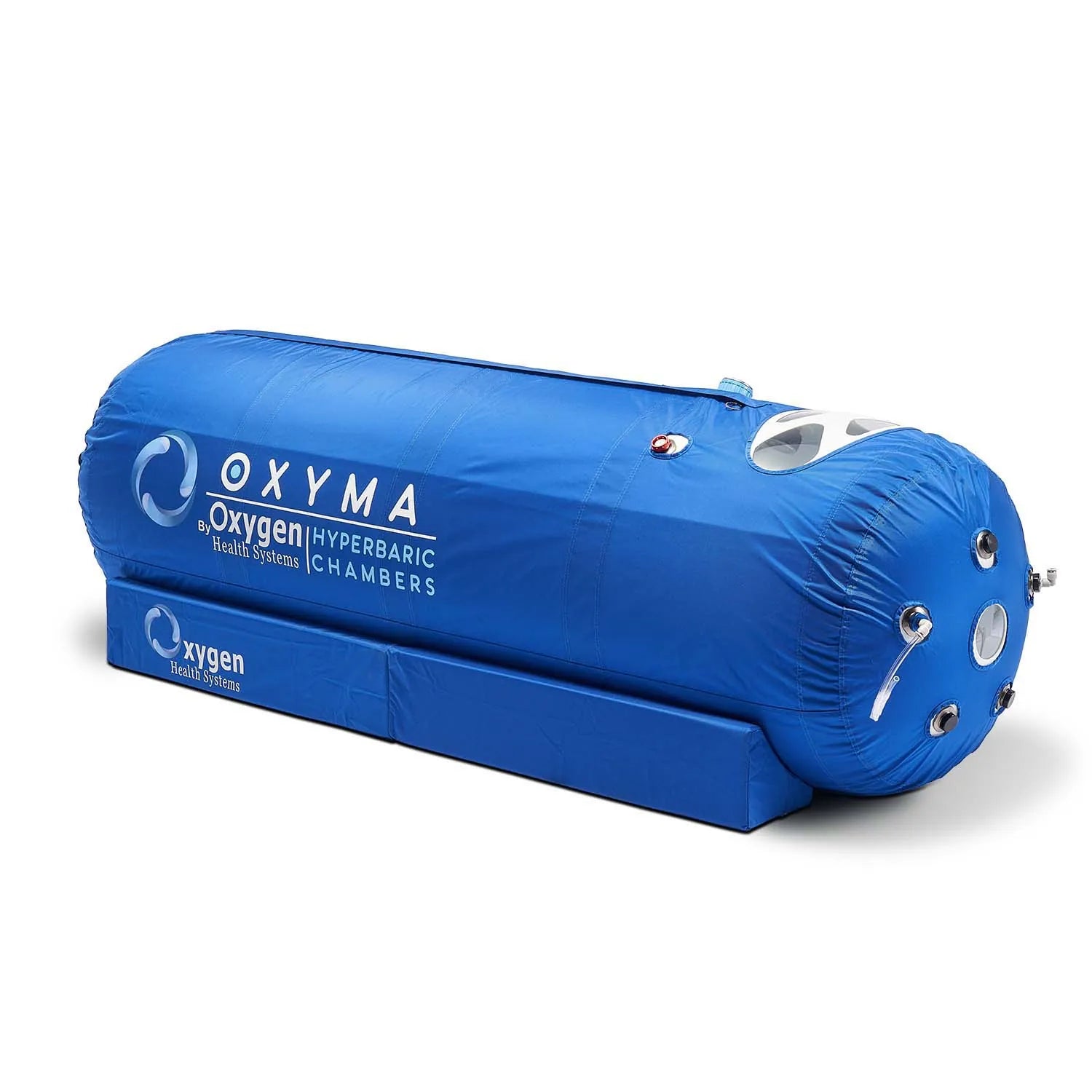

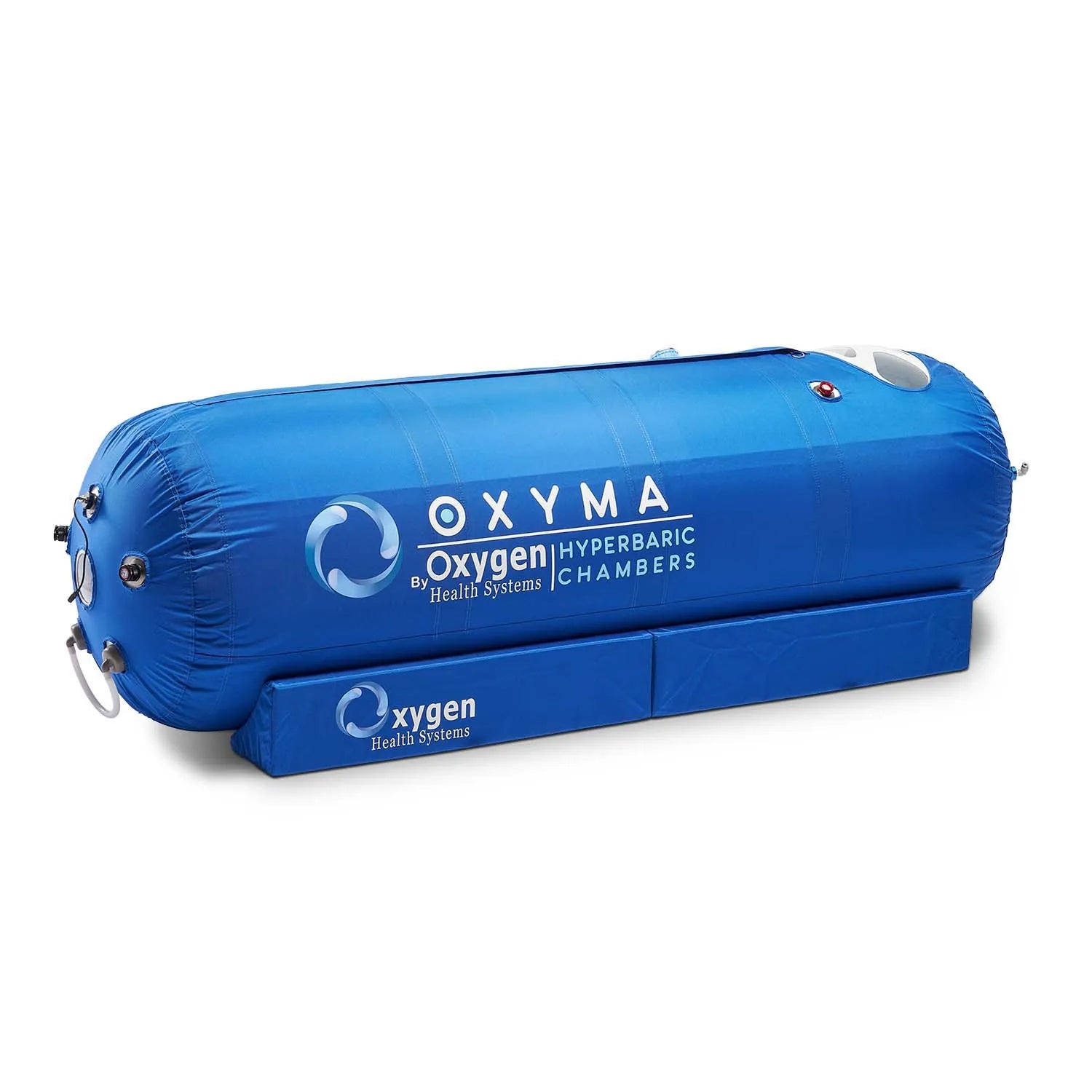

Meet the TRV OxyMa Hyperbaric Chamber, a clinically engineered 28-inch diameter system designed to support athlete recovery, injury rehabilitation, and advanced oxygen therapy in professional or home-based wellness environments. Compact yet high-performing, the OxyMa offers safe and consistent hyperbaric treatment at 1.4 ATA.
Built for independent use, it features a durable internal frame that holds structure at all times, along with a proprietary 3-zipper system, penta-welded seams, and three transparent viewports to provide comfort and visibility during sessions. The chamber’s internal and external pressure gauges ensure precise, real-time monitoring.
Crafted from tri-layered TPU and aerospace-grade Dacron—materials used in NASA spacesuits—the TRV OxyMa is built to last over 25 years of regular use. It has been tested under high pressure for over 43,000 continuous hours, validating its durability. The system includes a quiet 5-stage air compressor, integrated dehumidifier, and an optional high-purity oxygen concentrator for enhanced therapeutic benefit.
With low power usage, medical-grade certification, and a self-contained design requiring no oxygen tanks, the TRV OxyMa is ideal for those looking to invest in long-term recovery and wellness. Whether you're a clinic owner, physiotherapist, or dedicated athlete, the OxyMa offers unmatched reliability and performance in a compact chamber built for serious results.
Features
- Delivers oxygen therapy at 1.4 ATA (42 KPA / 5.8 PSI)
- Constructed from high-strength, non-toxic, medical-grade TPU and PET polyester
- Built-in internal frame retains shape when unpressurised
- Dual pressure gauges (internal & external) for safe monitoring
- Integrated dehumidifier for user comfort

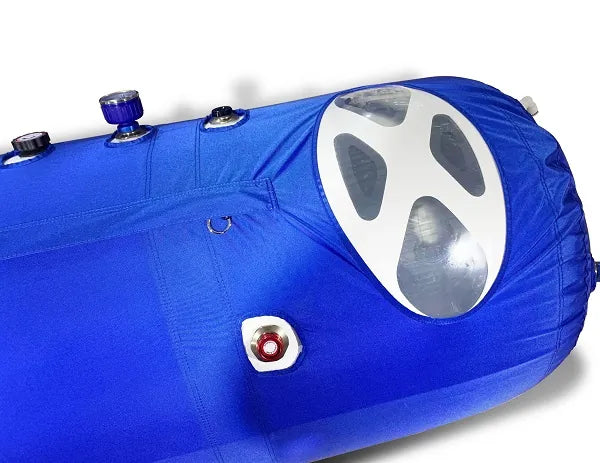

- 3 transparent viewports to reduce enclosure and improve visibility
- Proprietary 3-zipper airtight system with centre flap for added seal
- 5-stage air filtration with activated carbon and micron-level filters
- Emergency depressurisation valve for rapid exit
- Internal and external pressure relief valves
- Compatible with nasal cannula or face mask oxygen delivery
- Negative ion unit enhances treatment environment
- Air drying system with integrated moisture control
- Includes quick-setup instructional guides
- Operated safely by one person
Specifications
| Chamber Capsule | |
| Pressure | 1.4 ATA |
| Material | Medical-grade tri-layer TPU/PET polyester (non-toxic, reinforced) |
| Size | 710×2260 mm (28×89″) |
| Weight | 13 kg |

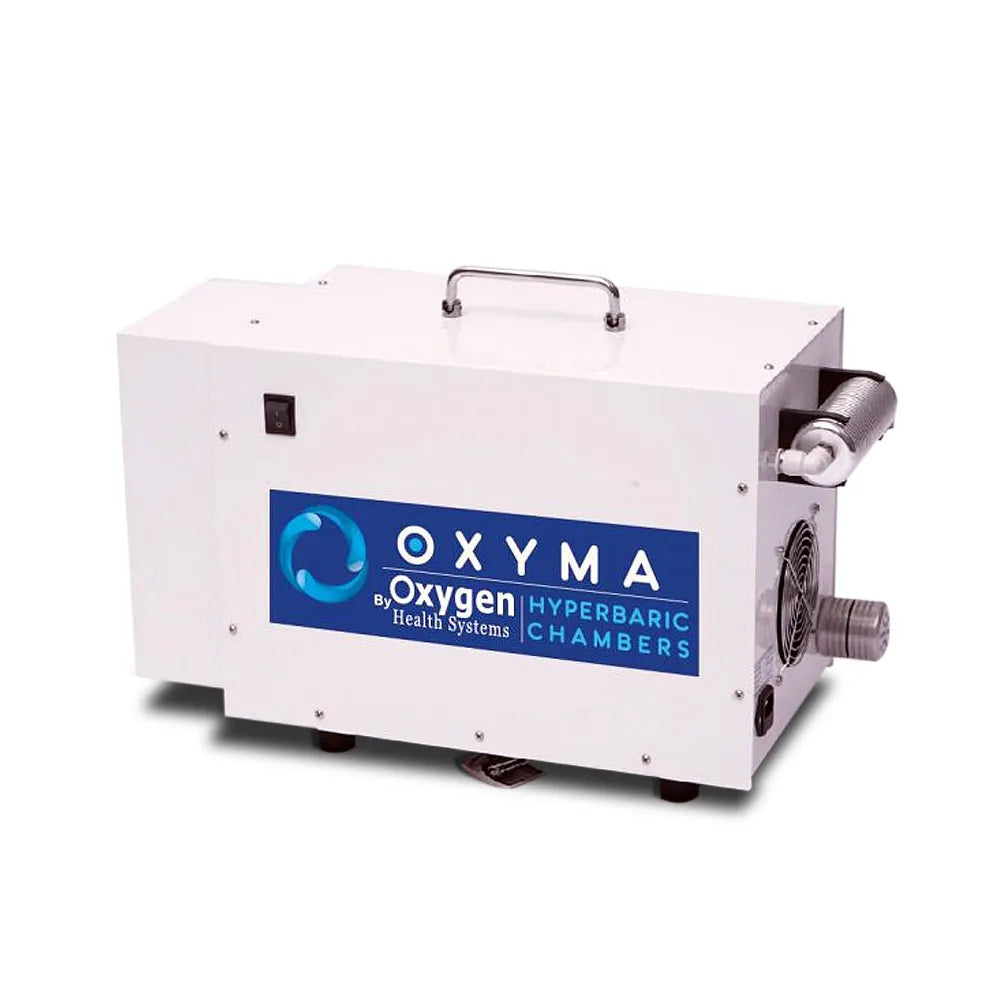

| Air Compressor | |
| Size | 380×240×260 mm (15×9.5×10.2″) |
| Air Flow | 72 L/min |
| Voltage | 230V 50Hz |
| Noise | <55 dB(A) |
| Weight | 18 kg |
| Power | 520W |
| Type | Low-noise, oil-free system with dual-stage activated carbon filters |
| Oxygen Concentrator | |
| Size | 330×300×620 mm (13×12×24.5″) |
| Voltage | 230V 50Hz |
| Weight | 30 kg |
| Power | 640W |
| Oxygen Flow | 1-10 L/min |
| Features | PSA Molecular sieve high technology. Continuous oxygen production. |

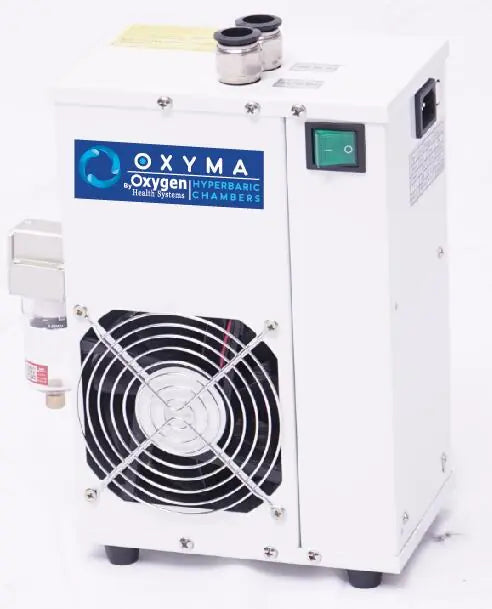

| Air Dryer | |
| Size | 180×120×350 mm (7.1x4.7x13.8") |
| Weight | 5 kg |
| Working Voltage | 230V 50Hz |
| Power | 300W |
| Features | Semiconductor refrigeration-based moisture and temperature control |
| Total Weight | |
| 66 kg | |
Certifications
Each chamber is manufactured in ISO9001, ISO14001, and ISO13485-certified facilities. Models supplied for use in the UK and Ireland meet UKCA or CE certification standards, ensuring regulatory compliance and product safety.
Delivery & Installation
Delivery
Delivery is free to Mainland UK. Delivery time is up to 30 calendar days, but usually much quicker than this. We will keep you updated following your order.
Installation
The TRV OxyMa Hyperbaric Chamber is delivered and fully installed by our professional team. It’s designed for simple integration into both home and clinic environments, with no need for special ventilation or structural changes. Our team will manage the entire process, including delivery, setup, and system testing, so your chamber is ready for safe and effective use from the moment it arrives.
Warranty
All TRV Hyperbaric Chambers come with a 3-year warranty.
